The SQL Database Normalized TagProvider connects to solution databases at runtime, enabling data querying without local Tags. Configure this TagProvider to display queried data on TrendCharts and other application areas, simplifying real-time access and utilization of normalized database information within the Unified Namespace.
On this page:
Configuration
To set up a new TagProvider connection navigate to Unified Namespace/TagProvider Connections and press the add button to open the New TagProvider Connection dialog. You can also create your TagProvider Connection directly from the AssetTree. To do this, navigate to Unified Namespace/Assets Tree and press

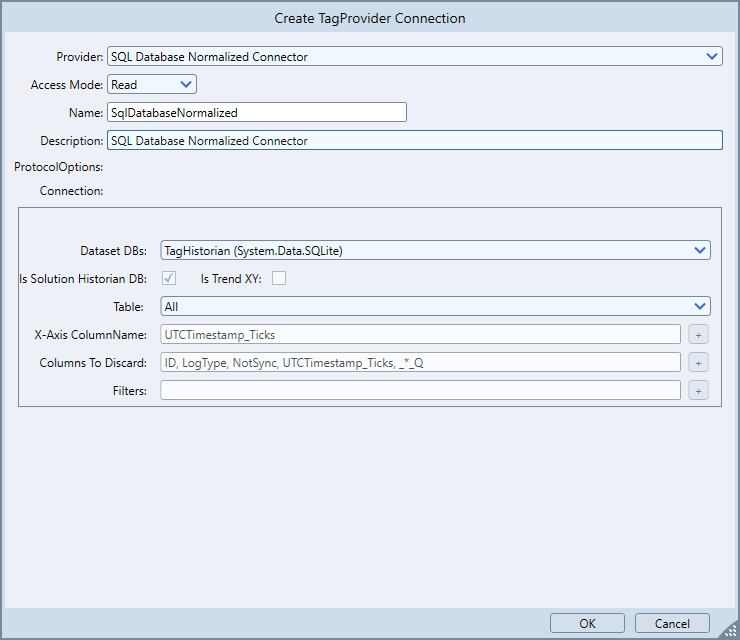

to open the New TagProvider Connection dialog. In the configuration dialog, select the SQL Database Normalized Connector on the Provider field and insert the required connection parameters. After that, press the Ok button to finish the provider configuration, and it will create a folder automatically in the Assets Tree (Unified Namespace / Assets Tree).
This TagProvider is Read-Only.
Connection Parameters
Field | Description |
|---|---|
Provider | Specifies the system the TagProvider will interface with. In this case, it interfaces with the SQL Database Connector. |
Access Mode | Determines permissions for interacting with tags. Read allows data reading. |
Name | User-defined name for the TagProvider instance. Identifies the specific configuration in the system. |
Description | Explains the TagProvider's purpose or the systems it interfaces with. Provides context for its usage. |
ProtocolOptions | Defines specific communication settings for the connection to the device. True or False. |
Connection | Defines connection string for the SQL database connection settings, including database source, path, and additional parameters. |
Field | Description |
|---|---|
Dataset DBs | Specifies the database to be used for storing and retrieving tag data. |
Is Solution Historian DB | Indicates if the database is used as a solution historian. |
Is Trend XY | Specifies if the data is to be treated as XY trend data, where X is NOT time-based. |
Table | Defines the table within the database to retrieve or store data from. |
X-Axis ColumnName | Specifies the column name to be used for the X-axis in trend data. |
Columns To Discard | List of columns to be discarded, separated by comma (',') |
Filters | Specifies filters to be applied to the data retrieval process. It defines a hierarchical order for columns, separated by comma (','), when assembling the TreeViewStructure. You can use an Asterisk (*) as wildcard for column filtering. Some usage examples are listed below. *Temperature: Will filter out any column that EndsWith the Temperature. LineMonitor*: Will filter out any column that StartsWith the LineMonitor. _*_Q: Will filter out any column that StartsWith an underscore ' _ ', and EndsWith Q. Is useful for filtering out TagQuality Info. |
Connecting to a Solution Historian
The SQL Database Normalized Connector can be used with any SQL database and schema that uses normalized datatables, but when used in conjunction with the SQL Historian tables, generated by the framework itself, some extended functional is available.
The flag for Is Solution Historian DB is always true, automatically filling some station parameters.
Is Trend XY: Input field is disabled. Default is false as it cannot be used for Normalized Datatables.
X-Axis Column Name: Input field is disabled. Default value is UTCTimestamp_Ticks.
Columns To Discard: Input field is disabled. Default value is ID, LogType, NotSync, UTCTimestamp_Ticks, _*_Q.
Filters: Input field is disabled. Default value is empty.

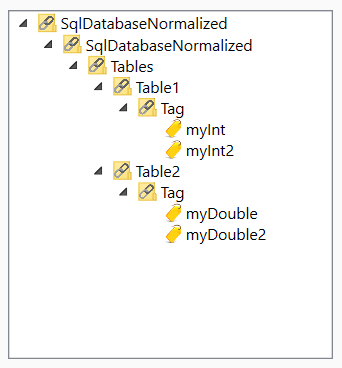

In Runtime, the DataModel Structure will behave as follows:
Example

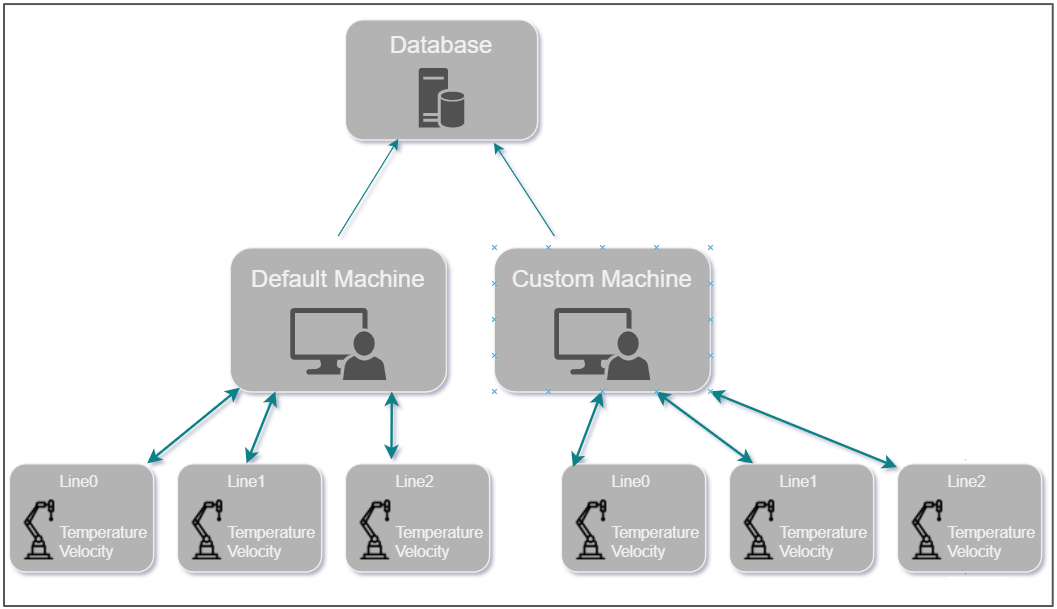

Our Example will be a Multi-Line system, where different machines (PLCs) are acquiring data and sending them to a Main DataServer. All data is being stored in the same Table.

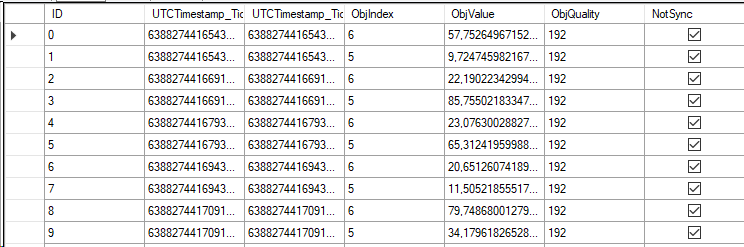

The result Table would look like this:
In order to retrieve data from the Lines, based on which Machine stored them, the TagProvider Configuration parameters can be kept as default, and you can obtain them using the "Asset" method.

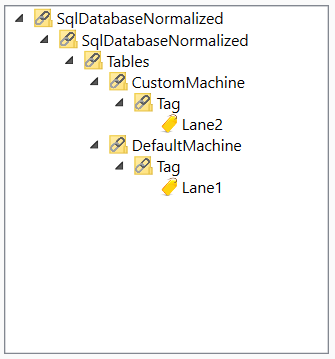

For obtaining Lane 1 members we can use the following paths:
Lane1.Temperature: SqlDatabaseNormalized/SqlDatabaseNormalized.Tables.DefaultMachine.Tag.Lane1.Temperature
Lane1.Velocity: SqlDatabaseNormalized/SqlDatabaseNormalized.Tables.DefaultMachine.Tag.Lane1.Velocity
For obtaining Lane 2 members we use the following ones:
Lane2.Temperature: SqlDatabaseNormalized/SqlDatabaseNormalized.Tables.CustomMachine.Tag.Lane2.Temperature
Lane2.Velocity: SqlDatabaseNormalized/SqlDatabaseNormalized.Tables.CustomMachine.Tag.Lane2.Velocity
As an example, you can retrieve those values in a TextBox using the following LinkedValue:
Asset("SqlDatabaseNormalized/SqlDatabaseNormalized.Tables.DefaultMachine.Tag.Lane1.Temperature")
