Data Foundation

Centralized real-time data repository with hierarchical organization for all solution data.

Modules → Data Foundation | Tutorial | How-to Guide

Overview

The Unified Namespace (UNS) is your solution's data foundation — a single source of truth for all real-time and configuration data. All other modules connect to the UNS to read and write process variables.

The Unified Namespace is Pillar 1 in the Four Pilars Configuration methodology, all FrameworX modules connect natively with the UNS.

the Data Services expose UNS to external applications via OPC UA, MQTT, MCP, and DataHub services.

Key Concepts

Concept	Purpose
Tag	Process variable with value, type, quality, and timestamp
UserType	Reusable data structure template (User-Defined Type)
Enumeration	Number-to-text mapping (e.g., 0="Off", 1="On")
TagProvider Service	Connection to external data sources (MQTT, OPC UA, etc.)
Asset Tree	Hierarchical view of Tags organized by path
Folder	Organizational container within the Tag hierarchy

External Integration

The UNS connects to external systems in two directions:

Component	Role	Description
TagProvider Services	FrameworX as Client	Connect to external systems (PLCs, MQTT brokers, OPC UA servers)
Data Servers	FrameworX as Server	External systems connect to FrameworX (expose UNS to clients, AI, other solutions)

→ TagProvider Services — Import and synchronize data from external sources
→ Data Servers — Expose UNS via OPC UA Server, MQTT Broker, MCP, and DataHub

What It Does

The Data Foundation provides:

Centralized data storage — All process variables in one namespace
Hierarchical organization — Folders and paths mirror physical/logical plant structure
Reusable templates — UserTypes define consistent data structures
External integration — TagProviders bring external data into the namespace dynamically
Real-time access — All modules subscribe to tag changes via event-driven architecture

Configuration Workflow

Step	Action	Description
1	Plan structure	Define naming conventions and hierarchy
2	Create UserTypes	Build reusable templates for equipment
3	Create Folders	Organize by area, line, or function
4	Create Tags	Define process variables with types
5	Configure TagProviders	Connect external data sources (optional)

Runtime Behavior

Data Access

At runtime, all modules access the UNS through the real-time tag database (TServer.exe):

// Direct tag access @Tag.Line1.Machine1.Temperature // Asset function (equivalent) Asset("Line1/Machine1/Temperature") // Tag properties @Tag.Motor1.Speed.Value @Tag.Motor1.Speed.Quality @Tag.Motor1.Speed.Timestamp

Event-Driven Updates

When a tag value changes:

Change triggers event in TServer
All subscribed modules receive notification
Displays update, alarms evaluate, historian logs

Data Explorer Tool

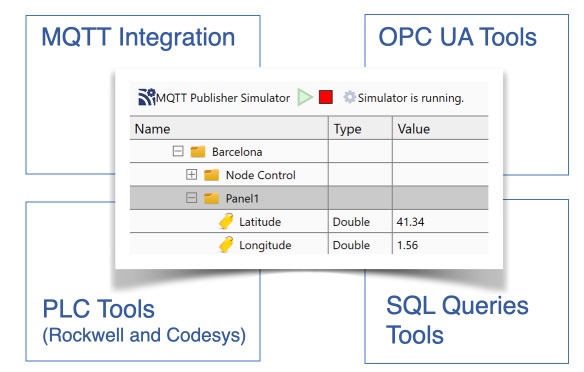

The DataExplorer streamlines UNS creation by enabling:

Discovery — Browse MQTT brokers, OPC servers, PLCs, SQL databases
Import — Create tags and templates from discovered structures
Validate — Test connections before adding to production

This tool reduces manual configuration time significantly when building tag structures.

→ Learn more in the DataExplorer How-to Guide

Feature Highlights

Full .NET type support — Integer, Double, DateTime, DataTable, arrays, and more
UserType inheritance — Build complex equipment models
Dynamic TagProviders — Access external data without pre-defining tags
Built-in namespaces — System status via Server, Client, Alarm, Device namespaces
Memory optimization — Properties allocated only when configured
Retentive values — Persist tag values across restarts
